FULL BORE BALL VALVE 394(equipped with ISO flange for actuator) FLANGED CONNECTION PN25
Characteristics
Мах. temperature (Т) °С.: +200 °С
Мin. temperature (Т) °С.: -60 °С
Valve tightness rate: Class "A"
Service life: At least 40 years.
Warranty period: 3 years or 10 000 cycles.
Working medium
Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards
valve materials.
Modifications

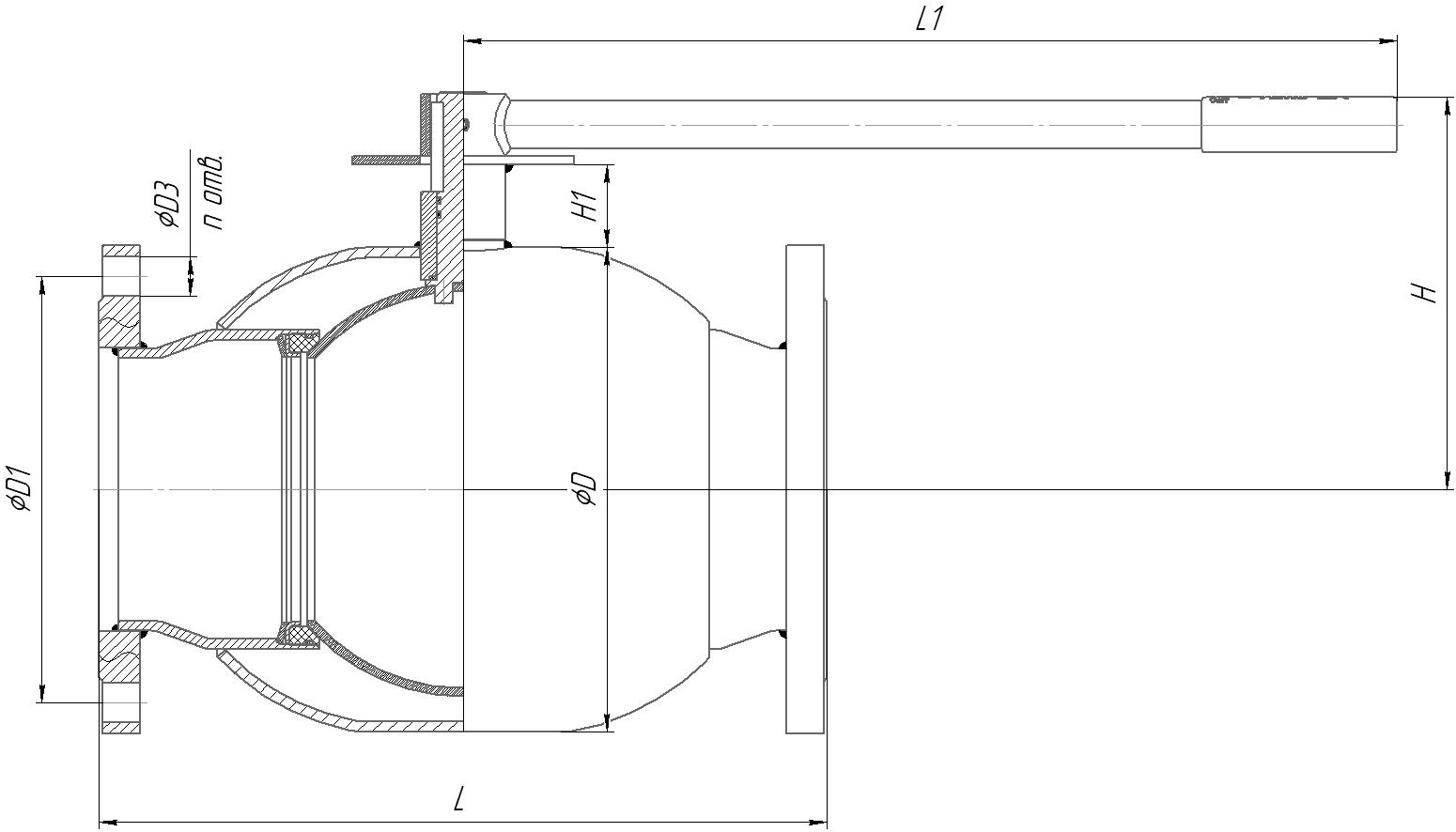

PRODUCT NUMBER | DN | PN | L | L1 | H | H1 | D | D1 | D2 | D3 | N OF HOLES | Вес | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
39420100 | 100 | 25 | 350 | 525 | 187 | 50 | 180 | 190 | 100 | 22 | 8 | 24,84 | |
39420125 | 125 | 25 | 380 | 525 | 203 | 48 | 219 | 220 | 125 | 26 | 8 | 44,60 | |
39420150 | 150 | 25 | 410 | 525 | 228 | 45 | 273 | 250 | 148 | 26 | 8 | 61,04 | |
39420200 | 200 | 25 | 530 | 1030 | 273 | 51 | 351 | 310 | 200 | 26 | 12 | 92,54 | |
39420250 | 250 | 25 | 750 | - | 414 | 101 | 426 | 370 | 240 | 30 | 12 | 147,00 | |
39420300 | 300 | 25 | 750 | - | 464 | 100 | 530 | 430 | 300 | 30 | 16 | 272,00 | |
39420400 | 400 | 25 | 990 | - | 560 | 103 | 630 | 550 | 390 | 33 | 16 | 617,00 | |
39420065 | 65 | 25 | 270 | 276 | 172,5 | 57 | 114 | 145 | 63 | 18 | 8 | 10,95 | |
3942080 | 80 | 25 | 290 | 276 | 182 | 57 | 133 | 160 | 75 | 18 | 8 | 17,70 |
