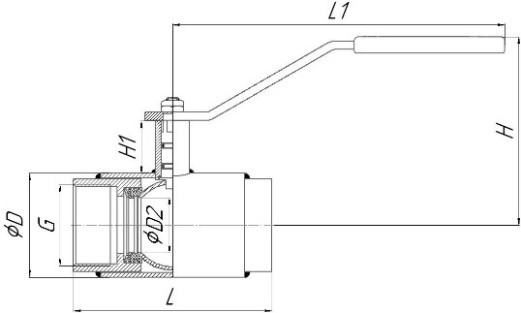

STANDARD BORE BALL VALVE 380 FEMALE THREADS CONNECTION

Кран шаровой стандартнопроходной 380 резьбовой

Characteristics

Мах. temperature (Т) °С.: +200 °С

Мin. temperature (Т) °С.: -60 °С

Valve tightness rate: Class "A"

Service life: At least 40 years.

Warranty period: 3 years or 10 000 cycles.

FEMALE THREADS CONNECTION

 Working medium:
 Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards
 valve materials.



Modifications

PRODUCT NUMBER DN PN L L1 H H1 D R D2 Вес
38020015 15 40 100 157,5 67 15,5 42 1/2 10 0,72
38020020 20 40 100 157,5 69 17,5 42 3/4 15 0,72
38020025 25 40 100 157,5 72 17 48 1 18 0,91
38020032 32 40 85 157,5 76 17 57 1 1/4 24 1,00
38020040 40 40 120 240 126 37,5 60 1 1/2 30 2,00
38020050 50 40 145 240 134,5 38 76 72 40 2/95
38020065 65 25 190 240 142 39 89 2 1/2 48 3,76
38020080 80 25 200 276 172,5 57 114 3 63 6,14
38020100 100 25 240 276 182 57 133 4 75 11,4

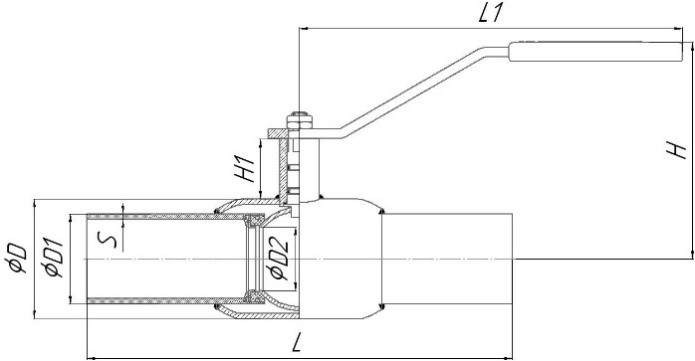

STANDARD BORE BALL VALVE 382 WELDED CONNECTION

Кран шаровой стандартнопроходной 382 приварной

Characteristics

Мах. temperature (Т) °С.: +200 °С

Мin. temperature (Т) °С.: -60 °С

Valve tightness rate: Class "A"

Service life: At least 40 years.

Warranty period: 3 years or 10 000 cycles.

Working medium:
Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards
 valve materials.

Modifications

PRODUCT NUMBER DN PN L L1 H H1 D D1 D2 S Вес
38220015 15 40 200 157,5 67 15,5 42 22 10 3 0,70
38220020 20 40 200 157,5 69 17,5 42 27 15 3 0,80
38220025 25 40 230 157,5 72 17 57 42 24 3 1,35
38220032 32 40 230 157,5 76 17 57 42 24 3 1,35
38220040 40 40 250 240 126 37,5 60 48 30 3 1,9
38220050 50 40 270 240 134,5 38 76 57 40 3,5 2,50
38220065 65 25 280 240 142 39 89 76 48 3,5 3,50
38220080 80 25 280 276 172,5 57 114 89 63 4 5,00
38220100 100 25 300 276 182 57 133 108 75 5 6,8

STANDARD BORE BALL VALVE 382 (equipped with ISO flange for actuator) WELDED CONNECTION

Кран шаровой стандартнопроходной 382, с фланцем для установки привода приварной

Characteristics

Мах. temperature (Т) °С.: +200 °С

Мin. temperature (Т) °С.: -60 °С

Valve tightness rate: Class "A"

Service life: At least 40 years.

Warranty period: 3 years or 10 000 cycles.

 Working medium

 Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards
 valve materials.

Modifications

PRODUCT NUMBER DN PN L L1 H H1 D D1 D2 S Вес
38220125 125 25 330 525 187 50 180 133 100 5 14,30
38220150 150 25 360 525 203 47 219 156 125 6 19,05
38220200 200 25 430 525 228 45 273 219 148 8 31,75
38220250 250 25 510 1030 273 51 351 273 200 8 60,35
38220300 300 16/25 730 - 414 101 426 325 240 10 122,65
38220350 350 16/25 730 - 464 100 530 377 300 10 235,00
38220400 400 16/25 860 - 464 100 530 426 300 10 285,00
38220500 500 16/25 970 - 561 103 630 530 390 10 455,00

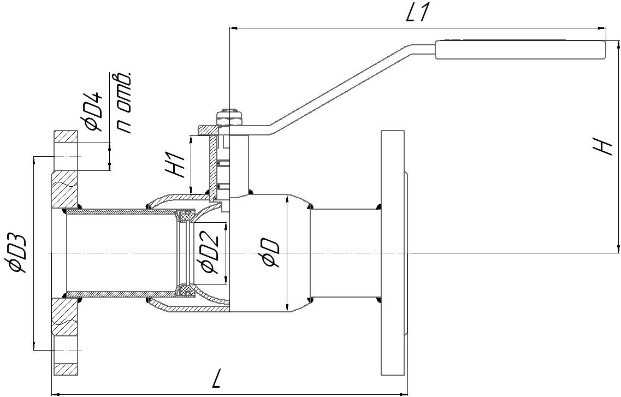

STANDARD BORE BALL VALVE 383 FLANGED CONNECTION

Кран шаровой стандартнопроходной 383 фланцевый

Characteristics

Мах. temperature (Т) °С.: +200 °С

Мin. temperature (Т) °С.: -60 °С

Valve tightness rate: Class "A"

Service life: At least 40 years.

Warranty period: 3 years or 10 000 cycles.

 Working medium

 Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards
 valve materials.

Modifications

PRODUCT NUMBER DN PN L L1 H H1 D D1 D2 D3 N OF HOLES Вес
38320015 15 40 130 157,5 67 15,5 42 42 10 14 4 1,80
38320020 20 40 150 157,5 69 17,5 42 75 15 14 4 2,35
38320025 25 40 160 157,5 72 17 48 85 18 14 4 2,85
38320032 32 40 180 157,5 76 17 57 100 24 18 4 3,95
38320040 40 40 200 240 126 37,5 60 110 30 18 4 5,10
38320050 50 40 230 240 134,5 38 76 125 40 18 4 6,15
38320065 65 16 270 240 142 39 89 145 48 18 4 8,40
38320080 80 16 280 276 172,5 57 114 160 63 18 4 11,10
38320100 100 16 300 276 182 57 133 180 75 18 8 13,90

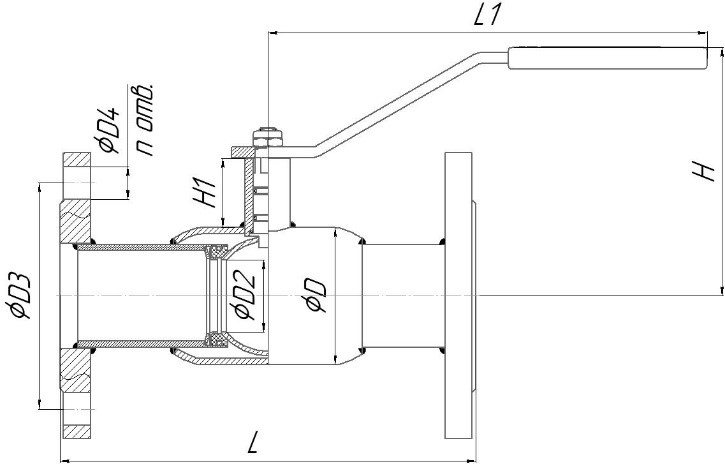

STANDARD BORE BALL VALVE 384 FLANGED CONNECTION* PN25

Кран шаровой стандартнопроходной 384 фланцевое (PN25)

Characteristics

Мах. temperature (Т) °С.: +200 °С

Мin. temperature (Т) °С.: -60 °С

Valve tightness rate: Class "A"

Service life: At least 40 years.

Warranty period: 3 years or 10 000 cycles.

Working medium

 Natural gas, liquefied petroleum gas, gaseous media, non aggressive towards
 valve materials.

Modifications

PRODUCT NUMBER DN PN L L1 H H1 D D1 D2 D3 N OF HOLES Вес
38420065 65 25 270 240 142 39 89 145 48 18 8 9,10
38420080 80 25 280 276 172,5 57 114 160 63 18 8 11,90
38420100 100 25 300 276 182 57 133 190 75 22 8 19,40
